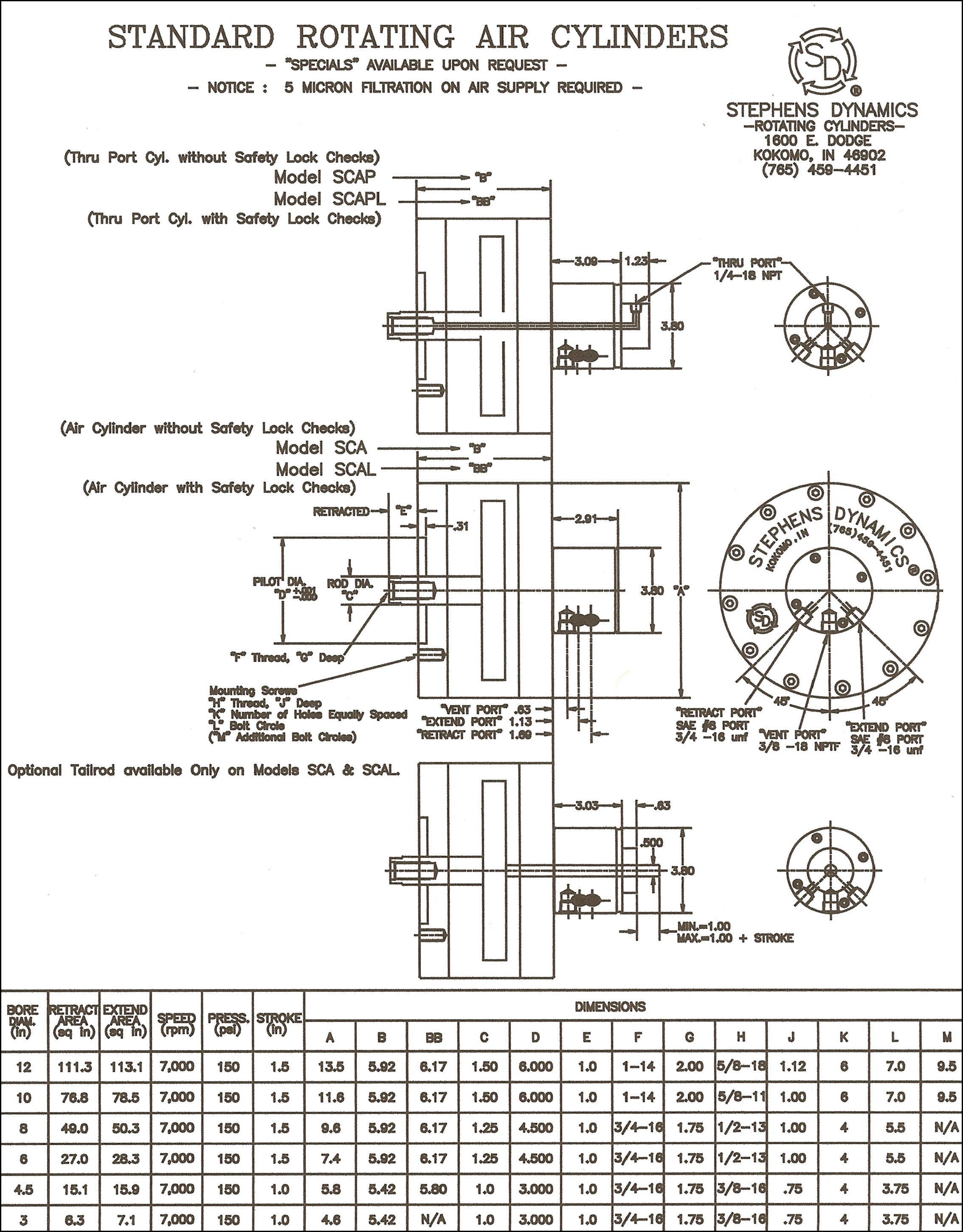

Stephens Dynamics Inc. Model SCA & SCAL pneumatic rotating cylinders provide for a remarkable broad range of applications. The newly enhanced design of our SCA & SCAL cylinders are very versatile with
through port (for coolant or part detection) and stroke detection features, as well as very durable due to non-rotating port connections. There are no fragile rods for rotating couplings and no oscillating or
wobbly target dogs to cause vibration or premature wear. SDI has experienced Regional Factory Sales Representatives who can help with your onsite cylinder and engineering needs along with our in house
engineering personnel. Our continual efficient engineering formulas allow these cylinders to be enhanced by an outstanding collection of high-performance features.
High Speed Rotating currently up to 7000 RPMS on all bore sizes with future engineering for higher speeds
Individually Balanced Cylinders enhance high speed operation in vertical, horizontal and inverted applications for smooth quiet machine operation and improved part finishes.
Built-in Lock Checks provide maximum protection. Internal check valves trap operating pressure in cylinder in case of power or pneumatic system failure. Our Lock Checks also work in "Hi/Lo" applications.
Easy replacement cartridges ideal for quick maintenance.
Lightweight Efficient Compact Design allows operation in restricted areas. The SCA & SCAL short length makes it ideal for vertical applications where spindle-to-floor clearance is limited.
Directly Interchanges with a ll American Standard Mountings for quick easy replacement of your old style cylinders.
Easy Maintenance Pneumatic Rotary Coupler A Stephens Dynamics Inc. seal-less design increases RPM and withstands higher operating temperatures. Double Sealed ball bearings eliminate lubrication maintenance. Simple design
is easy to service. The rotary coupler is secured to the cylinder with just four screws eliminating the need to remove the entire cylinder to service the rotary coupler.
Tailrod Option The SCA & SCAL can be equipped with a tailored to sense piston position, i.e… automatic loading applications
Cylinder Performance test sheets and installation instructions for your
convenience shipped with every cylinder
Warranty 1 year from date of purchase
Extended Warranties also available. Contact factory for details.
Complete Service Repair Center for all Stephens Dynamics Inc. cylinder models. Service response time (both sales and product) is a point of pride with us. We also repair all competitors cylinders including
ITW, LMC, SP Sheffer, Auto Bloc and many other cylinder makes.
Special Non-Work Holding Applications For specific applications, these cylinders can be used and/or modified for various uses in a multitude of environments. Consult factory representative.
